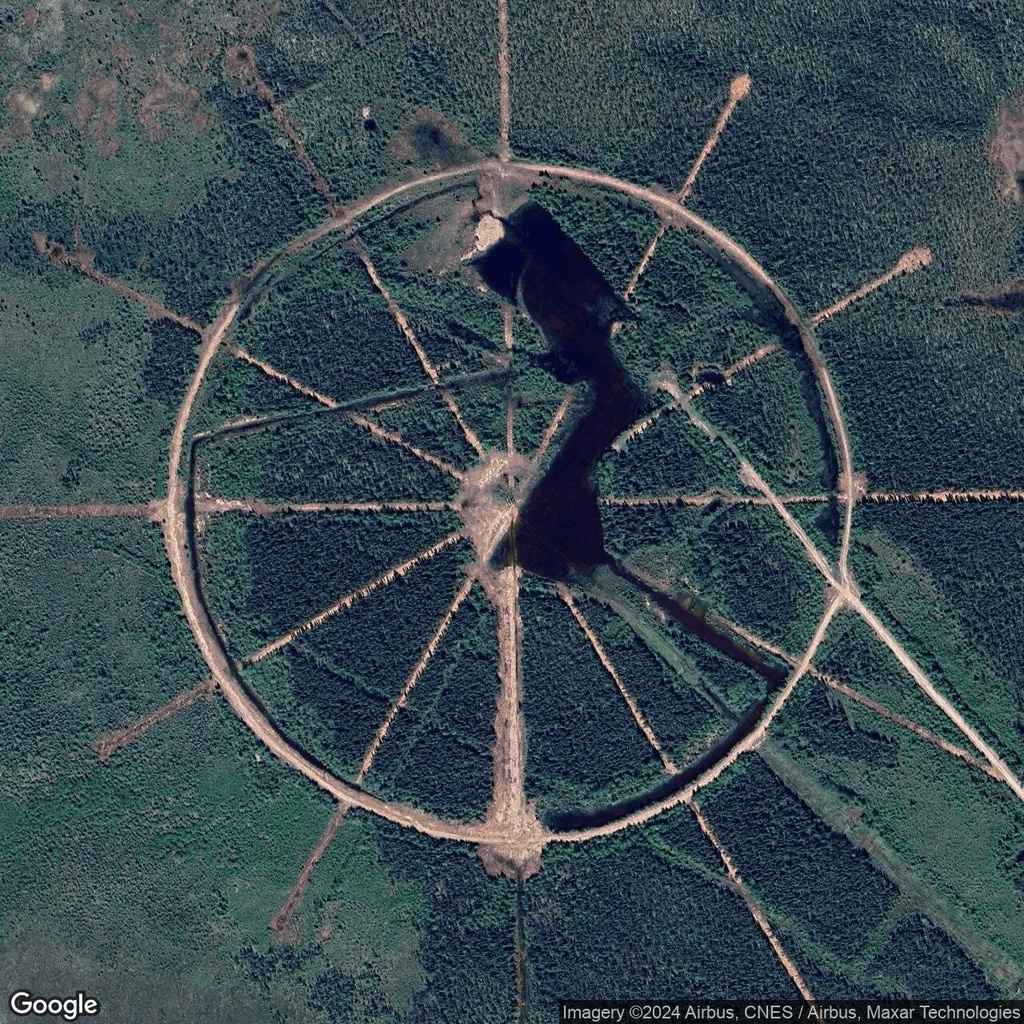

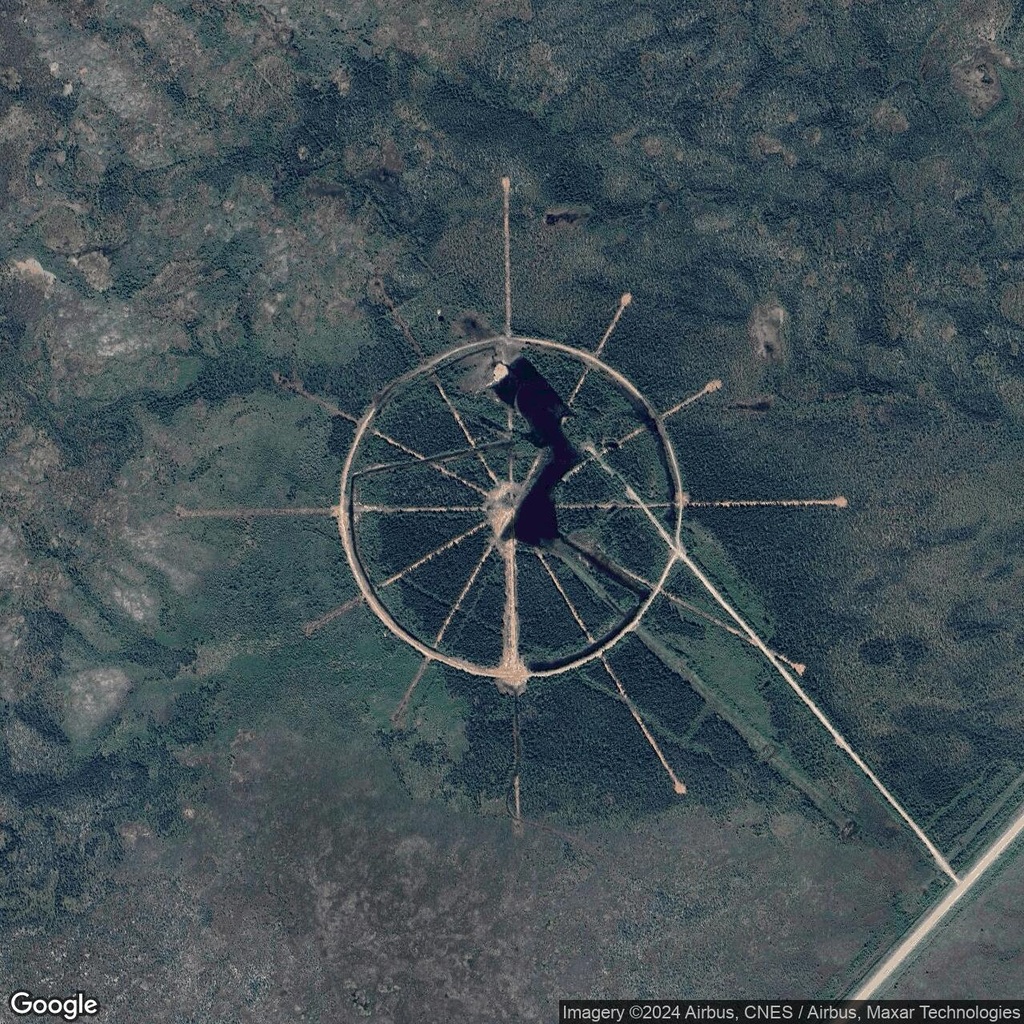

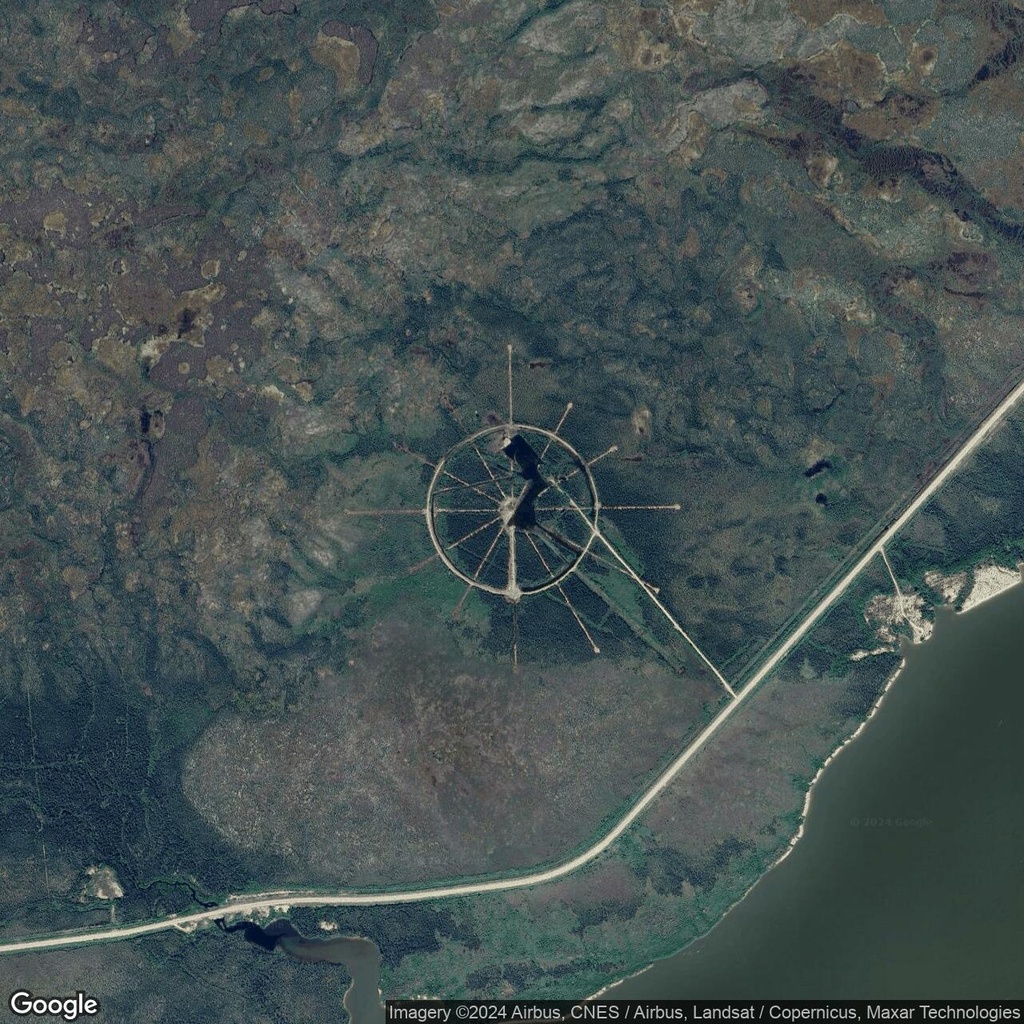

Northern Manitoba has a ship’s wheel that’s more than half a kilometre across. Near Long Spruce Generating Station, straight clearings fan out from a hub and cross a broad circular clearing. The shape marks the Henday ground electrode, a buried steel ring that forms part of Manitoba Hydro’s Bipole II transmission system.
Why does a power line need a ring?
Bipole II carries hydroelectric power from northern Manitoba over a high-voltage direct-current line. Its two poles normally carry current in opposite directions. If there’s an imbalance, the ground electrode allows the difference to flow through the earth. It can also provide a return path when one pole is out of service.
The ring spreads that electrical contact over a large area. The electrode itself is buried. The clearings above it are what give the site its wheel-and-spokes appearance. Nelson River DC Transmission System on Wikipedia
